27 SANTA CRUZ NOMAD 7 CC DEORE KIT
$7,699.00
Regular price
$7,699.00
Secure online payment
Australia wide shipping avaliable
Secure online payment
Local Pickup
Quality Built
27 SANTA CRUZ NOMAD 7 CC DEORE KIT
$7,699.00
XS

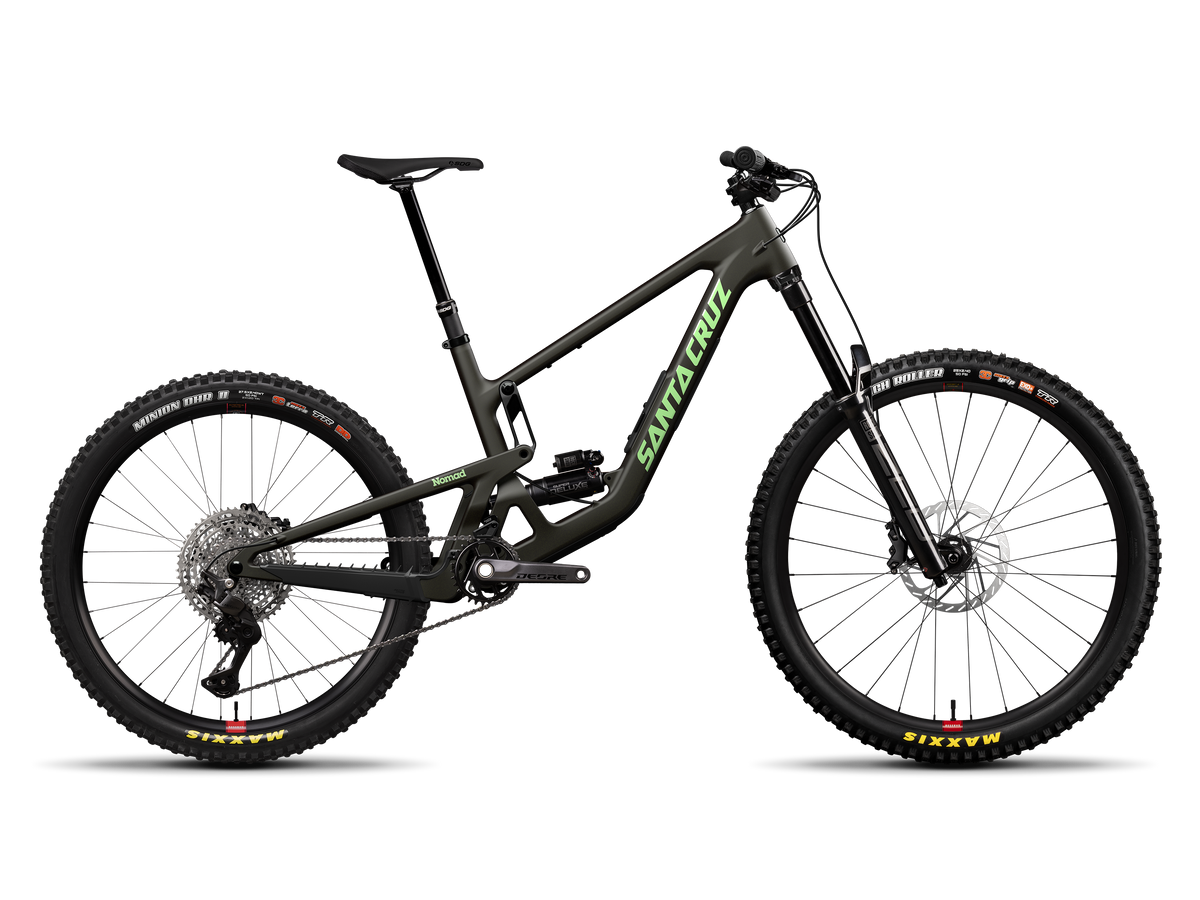

Matte Metallic Earth
Regular price
$7,699.00
Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.
FRAME
Weight: 35.63 lbs / 16.16 kg
SUSPENSION
Fork: RockShox ZEB Base, 170mm
Shock: RockShox Super Deluxe Select, 230x65mm
DRIVETRAIN
Bottom Bracket: Shimano MT501 68/73mm Threaded
Cassette: Shimano Deore M6200, 10-51t
Chain: Shimano Deore M6100, 12spd
Chainguide: OneUp Chainguide
Crankset: Shimano Deore M6200, 32t
Crank Length: S: 165mm, M-XXL: 170mm
Rear Derailleur: Shimano Deore M7200, 12spd
Right Shifter: Shimano Deore M6200, 12spd with Wolf Tooth Shiftmount Adapter for MM
BRAKES
Brakes: SRAM DB8
Front Rotor: SRAM Centerline, 200mm
Rear Rotor: SRAM Centerline, 200mm
COCKPIT
Grips: Santa Cruz Bicycles House Grips
Handlebars: Burgtec Aluminum Bar, 35mm
Handlebar Width: S: 760mm, M-XXL: 800mm
Handlebar Rise: S: 20mm, M-XXL: 30mm
Headset: FSA IS-2/47/42 ACB
Saddle: SDG Bel-Air V3 Steel
Seatpost: SDG Tellis Dropper, 31.6mm
Dropper Length: S: 125mm, M: 150mm, L: 170mm, XL-XXL: 200mm
Stem: OneUp Enduro Stem, 42mm
WHEELS
Front Rim: Reserve 30|TR AL
Front Hub: Shimano TC500, 15x110, 6-Bolt
Front Tyre: Maxxis High Roller, 29" x 2.4", 3C MaxxGrip, EXO+
Rear Rim: Reserve 30|HD AL
Rear Hub: Shimano TC600, 12x148, MicroSpline, 6-Bolt
Rear Tyre: Maxxis Minion DHR II, 27.5" x 2.4", 3C MaxxTerra, Double Down
Valves: Reserve Fillmore Valves
TECHNICAL SPECIFICATIONS
Headset: Integrated (IS41/52)
Fork Axle to Crown: 588mm
Fork Offset: 44mm
Fork Compatibility: 170-180mm
Suspension System: VPP™
Rear Travel: 170mm
Recommended Sag: 30%
Shock Length: 230mm
Shock Stroke: 65mm
Front Shock Bushing Size: 30x8mm
Rear Shock Bushing Size: 30x8mm
Bottom Bracket Shell: 73mm Threaded
Chainline: 55mm
Max Chainring Size: 36t
Chainguide Standard: Integrated upper guide + 2-bolt ISCG 05 bash mount
UDH Compatible: Yes
Rear Spacing: 148mm
Rear Brake Mount: Postmount 200mm
Max Rotor Size: 223mm
Seatpost Diameter: 31.6mm
Seat Clamp Diameter: 36.4mm
Water Bottle Mounts: 1
Downtube Storage: Glovebox
