27 SANTA CRUZ NOMAD 7 CC GX AXS-Kit
$10,499.00
Regular price
$10,499.00
Secure online payment
Australia wide shipping avaliable
Secure online payment
Local Pickup
Quality Built

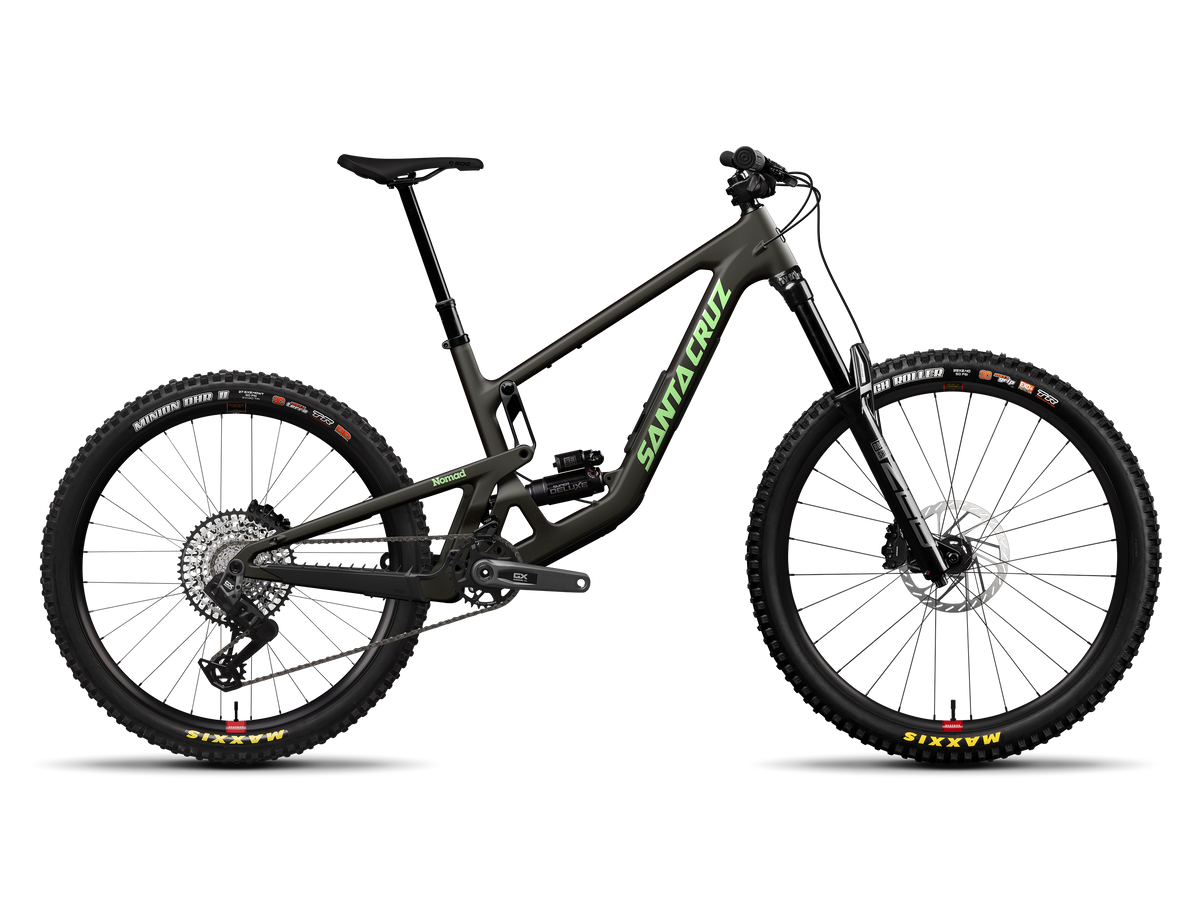

27 SANTA CRUZ NOMAD 7 CC GX AXS-Kit
$10,499.00
XS
Matte Metallic Earth
Regular price
$10,499.00
Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.
FRAME
Material: Carbon CC
Frame: Carbon CC MX 170mm Travel VPP™
Travel: 170mm
Weight: 34.48 lbs / 15.64 kg
Wheel Size: MX
SUSPENSION
Fork: RockShox ZEB Select+, 170mm
Shock: RockShox Super Deluxe Select+, 230x65mm
DRIVETRAIN
Bottom Bracket: SRAM DUB 73mm MTB Wide BB
Cassette: SRAM GX 1275 Eagle T-Type, 10-52t
Chain: SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide: OneUp Chainguide
Crankset: SRAM GX Eagle DUB T-Type, 32t
Crank Length: S: 165mm, M-XXL: 170mm
Rear Derailleur: SRAM GX Eagle AXS T-Type, 12spd
Right Shifter: SRAM AXS Pod Controller
BRAKES
Brakes: SRAM Maven Bronze
Front Rotor: SRAM HS2 200mm
Rear Rotor: SRAM HS2 200mm
COCKPIT
Grips: Santa Cruz Bicycles House Grips
Handlebars: OneUp Carbon Bar, 35mm
Handlebar Width: S: 760mm, M-XXL: 800mm
Handlebar Rise: S: 20mm, M-XXL: 35mm
Headset: Cane Creek 50 IS Integrated Headset
Saddle: SDG Bel-Air V3 Lux-Alloy Atmos
Seatpost: OneUp Dropper Post, 31.6mm
Dropper Length: S: 150mm, M: 180mm, L-XL: 210mm, XXL: 240mm
Stem: OneUp Enduro Stem, 42mm
WHEELS
Front Rim: Reserve 30|SL AL 6069
Front Hub: DT Swiss 370, 15x110, 6-Bolt, 28h
Front Tyre: Maxxis High Roller, 29" x 2.4", 3C MaxxGrip, EXO+
Rear Rim: Reserve 30|HD AL 6069
Rear Hub: DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 32h
Rear Tyre: Maxxis Minion DHR II, 27.5" x 2.4", 3C MaxxTerra, Double Down
Valves: Reserve Fillmore Valves
TECHNICAL SPECIFICATIONS
Headset: Integrated (IS41/52)
Fork Axle to Crown: 588mm
Fork Offset: 44mm
Fork Compatibility: 170-180mm
Suspension System: VPP™
Rear Travel: 170mm
Recommended Sag: 30%
Shock Length: 230mm
Shock Stroke: 65mm
Front Shock Bushing Size: 30x8mm
Rear Shock Bushing Size: 30x8mm
Bottom Bracket Shell: 73mm Threaded
Chainline: 55mm
Max Chainring Size: 36t
Chainguide Standard: Integrated upper guide + 2-bolt ISCG 05 bash mount
UDH Compatible: Yes
Rear Spacing: 148mm
Rear Brake Mount: Postmount 200mm
Max Rotor Size: 223mm
Seatpost Diameter: 31.6mm
Seat Clamp Diameter: 36.4mm
Water Bottle Mounts: 1
Downtube Storage: Glovebox
