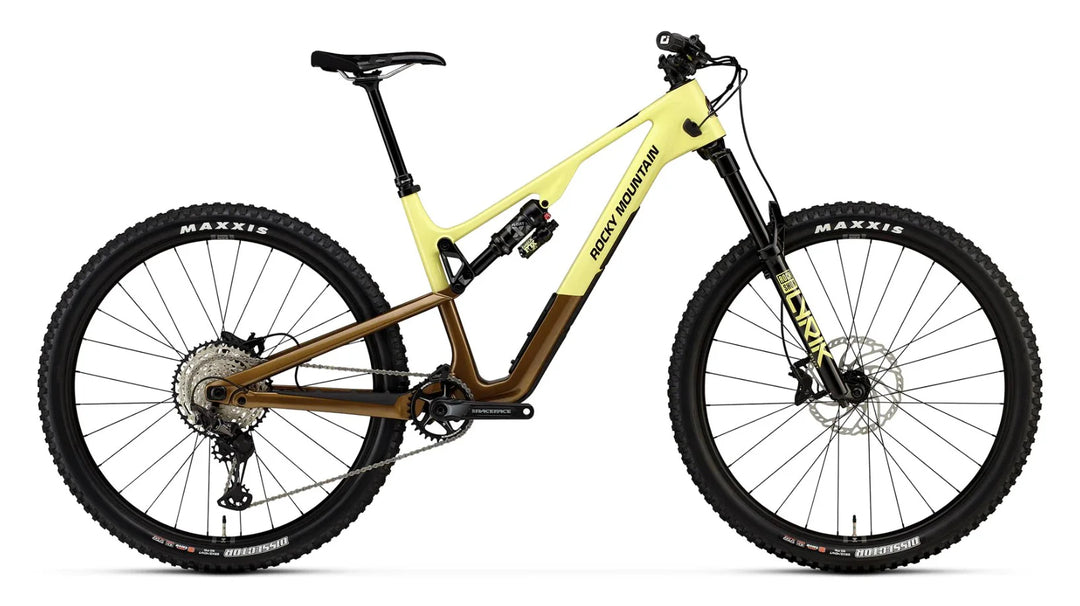

Rocky Mountain Instinct C50 + XT Di2 Upgrade Kit

The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs. Our most versatile platform just got more adventure-ready with updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Meet the Instinct Carbon.

Frame
SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2-Position Axle | 140mm Travel | SMOOTHWALL™ Carbon Rear Triangle

Fork
RockShox Lyrik Select RC 150mm | 27.5" = 37mm Offset | 29" = 42mm Offset

Rear Shock
Fox Float X Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS–SM = 190x45mm | MD–LG–XL = 210x52.5mm | Size-Specific Tune in FAQ

Handlebars
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35mm Clamp

Grips
ODI Elite Pro Lock On

Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm

Seatpost
X Fusion Manic Alloy 30.9mm | Shimano MT500 Remote | XS = 125mm | SM = 150mm | MD–LG = 170mm | XL = 200mm

Saddle
WTB Volt Race 142

Shifters
Shimano XT

Rear Derailleur
Shimano XT

Brakes
Shimano MT6120 4-Piston | Metal Pads

Cassette
Shimano SLX 10-51T

Cranks & Chainring
Race Face Aeffect Cinch | 32T | 24mm Spindle | Crankarm Length: XS–SM = 165mm | MD–XL = 170mm

Chain
Shimano M6100

Bottom Bracket
Shimano SM-BBMT500

Headset
FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | ±5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

Front Hub
Rocky Mountain SL Sealed Boost 15mm

Rear Hub
DT Swiss 370 Boost 148mm | 18T Star-Ratchet

Spokes
2.0 Stainless

Tyres
Front: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready
Rear: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready

Rims
WTB ST Light i30 TCS 2.0 Tubeless | 28H | Tubeless Ready | Tape and Valves Included

Weight (NW)
14.06kg
