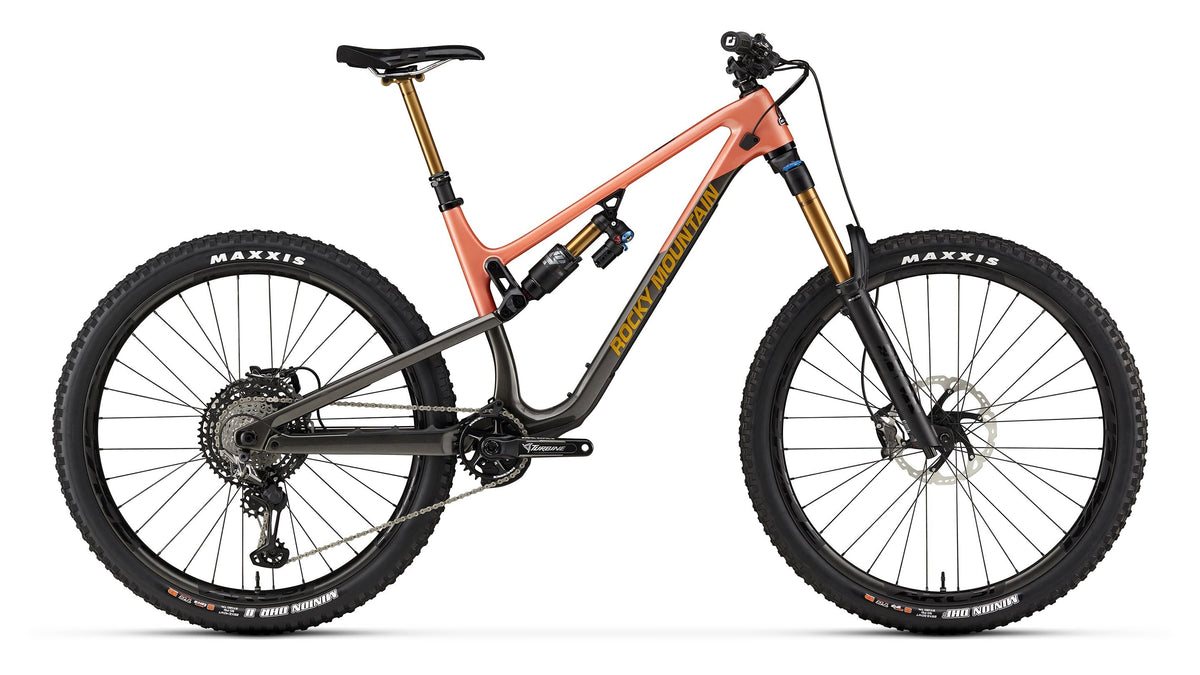

Rocky Mountain Altitude Carbon 90 Rally Edition

Rocky Mountain Altitude

Race circuits or Sunday shreds, the Rocky Mountain Altitude has you covered.

Purpose-built and race-proven, the Altitude is an enduro weapon designed to take on steep trails, technical terrain and demanding descents. Its 160mm of rear travel and 170mm fork deliver the capability to push harder, ride faster and take on bigger lines with confidence.

The Altitude's enduro performance isn't just for the race track. It's built for riders who want to climb faster, descend harder and make every ride count.

Push limits. Get faster. Get better.

Key Features

• SMOOTHWALL™ Carbon frame and rear triangle
• 160mm rear travel with 170mm front travel
• RIDE-9™ adjustable geometry
• 2-position axle
• Fox 38 Float EVOL GRIP2 Factory fork
• Fox Float X2 Factory rear shock
• Shimano XTR 12-speed drivetrain
• Shimano XTR Trail 4-piston brakes
• Race Face ARC Carbon 31 tubeless-ready wheels
• Maxxis Minion DHF and DHR II tyres
• CushCore XC tyre inserts
• Fox Transfer Factory Series dropper post

Specifications

Frame & Suspension

Frame: SMOOTHWALL™ Carbon | Full sealed cartridge bearings | Press-fit BB | Internal cable routing | 2-bolt ISCG05 tabs | RIDE-9™ adjustable geometry | 2-position axle | 160mm rear travel | SMOOTHWALL™ Carbon rear triangle

Fork: Fox 38 Float EVOL GRIP2 Factory Series | 170mm travel | 27.5": 37mm offset | 29": 44mm offset

Front Travel: 170mm

Shock: Fox Float X2 Factory | Sealed bearing eyelet | 25 x 8mm hardware | S: 210 x 55mm | M–XL: 230 x 60mm | Size-specific tune

Rear Travel: 160mm

Headset: FSA Orbit NO.57E | Sealed stainless 36° x 45° bearings | 1.5" crown race

Cockpit

Stem: Race Face Turbine R | 0° rise | 40mm

Handlebar: Race Face Next R | 780mm | 35mm rise | 8° backsweep | 4° upsweep | 35mm clamp

Grips: ODI Elite Pro Lock-On

Brakes & Drivetrain

Brakes: Shimano XTR Trail | 4-piston | IceTec metal pads | 203mm Shimano RT86 rotors front and rear

Shifters: Shimano XTR

Rear Derailleur: Shimano XTR

Cranks & Chainring: Race Face Turbine Cinch | 32T | 30mm spindle | 170mm crank length

Bottom Bracket: Race Face BB92 | 30mm

Cassette: Shimano XTR | 12-speed | 10–51T
