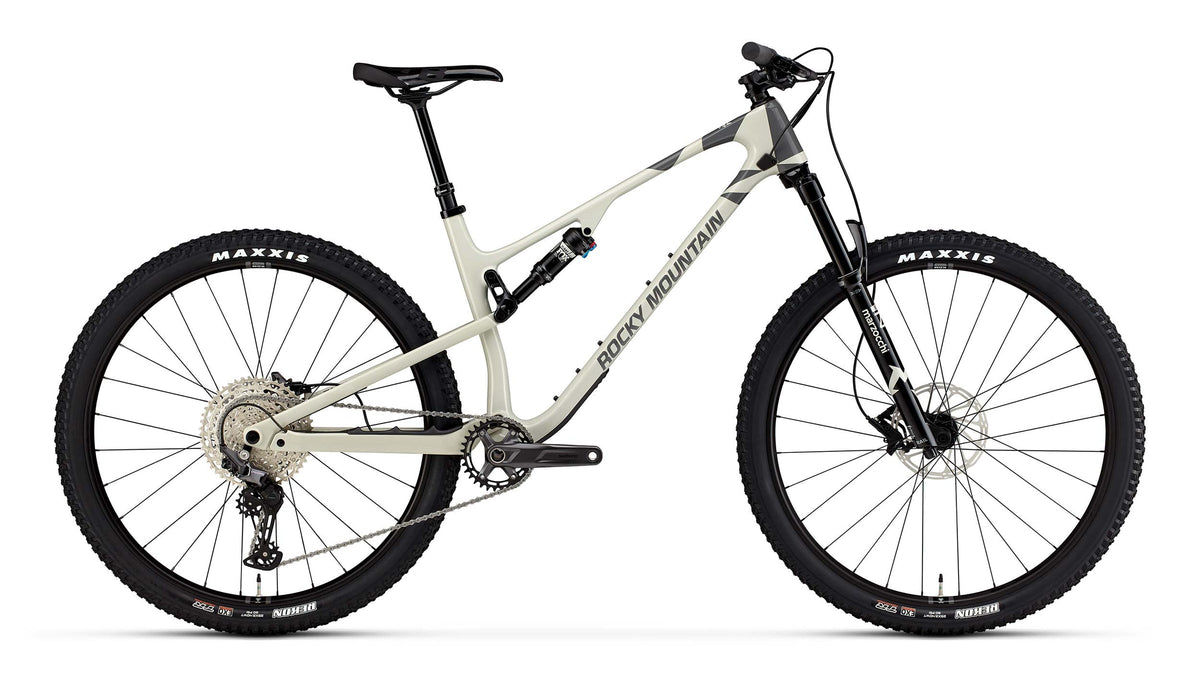

Rocky Mountain Element Carbon 30

Rocky Mountain Element

Purpose-built to hit the sweet spot between lightweight cross-country climbing efficiency and technical trail performance, the Element delivers the best of both worlds.

With exceptional climbing efficiency, added stability on fast descents and confident handling on tight singletrack, the Element is designed to make every trail ride faster and more capable.

Light. Stiff. Fast. Smooth. Precise.

You're now in your Element.

Key Features

• SMOOTHWALL™ Carbon frame and rear triangle
• 120mm rear travel with 130mm front travel
• RIDE-4™ adjustable geometry and suspension rate
• Marzocchi Z2 Float EVOL Rail fork
• Fox Float DPS Performance rear shock
• Shimano SLX 12-speed drivetrain
• Shimano MT4100 2-piston brakes
• WTB ST Light i27 TCS 2.0 tubeless-ready wheels
• Maxxis Rekon 2.4" WT EXO tubeless-ready tyres
• X-Fusion Manic dropper post

Specifications

Frame & Suspension

Frame: SMOOTHWALL™ Carbon | Full sealed cartridge bearings | Press-fit BB | Internal cable routing | RIDE-4™ adjustable geometry and suspension rate | 120mm rear travel | SMOOTHWALL™ Carbon rear triangle

Fork: Marzocchi Z2 Float EVOL Rail | 130mm travel | 44mm offset

Front Travel: 130mm

Shock: Fox Float DPS Performance | Sealed bearing eyelet | 20 x 8mm hardware | 190 x 45mm | Size-specific tune

Rear Travel: 120mm

Headset: FSA Orbit NO.57E ZS44/56 | Sealed 36° x 45° bearings | 1.5" crown race

Cockpit

Stem: Rocky Mountain 31.8 XC | 5° rise | 50mm

Handlebar: Rocky Mountain AM | XS: 760mm | S–XL: 780mm | 25mm rise | 9° backsweep | 5° upsweep | 31.8mm clamp

Grips: Rocky Mountain Lock-On Light

Brakes & Drivetrain

Brakes: Shimano MT4100 | 2-piston | Resin pads

Shifters: Shimano SLX

Rear Derailleur: Shimano SLX

Cranks & Chainring: Shimano Deore | 32T | 24mm spindle | XS–S: 165mm | M–XL: 170mm

Bottom Bracket: Shimano SM-BBMT500

Cassette: Shimano Deore | 10–51T | 12-speed

Chain: Shimano M6100

Wheels & Tyres

Front Hub: Shimano MT410 | 15mm Boost

Rear Hub: Shimano MT410 Boost | 148mm

Spokes: 2.0mm Stainless

Rims: WTB ST Light i27 TCS 2.0 | 28H | Tubeless Ready | Tape and valves included

Front Tyre: Maxxis Rekon WT | 2.4" | EXO | Tubeless Ready

Rear Tyre: Maxxis Rekon WT | 2.4" | EXO | Tubeless Ready

Finishing Kit

Seatpost: X-Fusion Manic Composite | 30.9mm | XS–S: 125mm | M: 150mm | L–XL: 170mm

Saddle: WTB Volt 142

Weight

Weight: Not currently available. Weight will be updated when confirmed.

Notes

Specifications and component details may vary by model year or frame size. We make every effort to ensure product information is accurate, but specifications and prices may be updated without notice.
