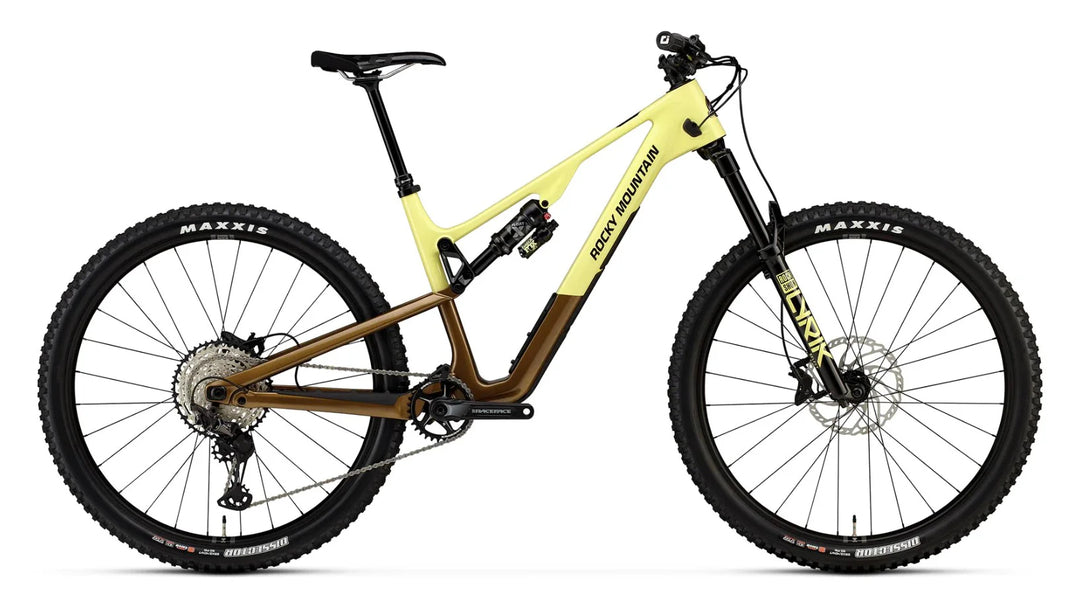

Rocky Mountain Instinct Carbon 50 BN/YW

Rocky Mountain Instinct Carbon

The Rocky Mountain Instinct Carbon is at home on technical trails while still giving you the efficiency to push the distance and crush the climbs.

Rocky Mountain’s most versatile platform has been updated with revised frame features, geometry and suspension kinematics, creating a confident, capable trail bike for everything from long adventures to technical descents.

Meet the Instinct Carbon.

Key Features

• SMOOTHWALL™ Carbon frame and rear triangle
• 140mm rear travel with 150mm front travel
• RIDE-4™ adjustable geometry
• RockShox Lyrik Select RC fork
• Fox Float X Performance rear shock
• Shimano XT 12-speed drivetrain
• Shimano MT6120 4-piston brakes
• Race Face Aeffect Cinch crankset
• WTB ST Light i30 TCS 2.0 tubeless-ready wheels
• Maxxis Dissector 2.4 WT tyres
• X-Fusion Manic Alloy dropper post
• 14.06kg

Specifications

Frame
SMOOTHWALL™ Carbon
Full sealed cartridge bearings
Press-fit BB
Internal cable routing
2-bolt ISCG05 tabs
RIDE-4™ adjustable geometry
2-position axle
140mm rear travel
SMOOTHWALL™ Carbon rear triangle

Fork
RockShox Lyrik Select RC, 150mm
27.5" = 37mm offset
29" = 42mm offset

Rear Shock
Fox Float X Performance
Sealed bearing eyelet
20x8mm F hardware
XS-SM = 190x45mm
MD-LG-XL = 210x52.5mm
Size-specific tune

Rear Travel
140mm

Headset
FSA Orbit NO.85 Reach Adjust
0mm cups installed
+/- 5mm cups included
Durable sealed stainless 36°x45° bearings
30.2mm x 41mm x 7.1mm upper
40mm x 51.8mm x 7.5mm lower
1.5" crown race

Stem
Rocky Mountain 35 AM
5° rise
40mm length, all sizes

Handlebar
Rocky Mountain AM
780mm width
25mm rise
9° backsweep
5° upsweep
35mm clamp

Grips
ODI Elite Pro Lock On

Brakes
Shimano MT6120 4-piston
Metal pads

Shifters
Shimano XT

Rear Derailleur
Shimano XT

Cranks & Chainring
Race Face Aeffect Cinch
32T chainring
24mm spindle
XS-SM = 165mm crankarms
MD-XL = 170mm crankarms

Bottom Bracket
Shimano SM-BBMT500

Cassette
Shimano SLX 10-51T

Chain
Shimano M6100

Front Hub
Rocky Mountain SL Sealed Boost 15mm

Rear Hub
DT Swiss 370 Boost 148mm
18T Star-Ratchet

Spokes
2.0 stainless

Rims
WTB ST Light i30 TCS 2.0
28H
Tubeless ready
Tape and valves included

Tyres
Front: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready
Rear: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready

Seatpost
X-Fusion Manic Alloy 30.9mm
Shimano MT500 remote
XS = 125mm
SM = 150mm
MD-LG = 170mm
XL = 200mm

Saddle
WTB Volt Race 142

Weight
14.06kg

Notes

Specifications and prices are subject to change. We make every effort to ensure the information provided is accurate, but specifications may be updated without notification.
